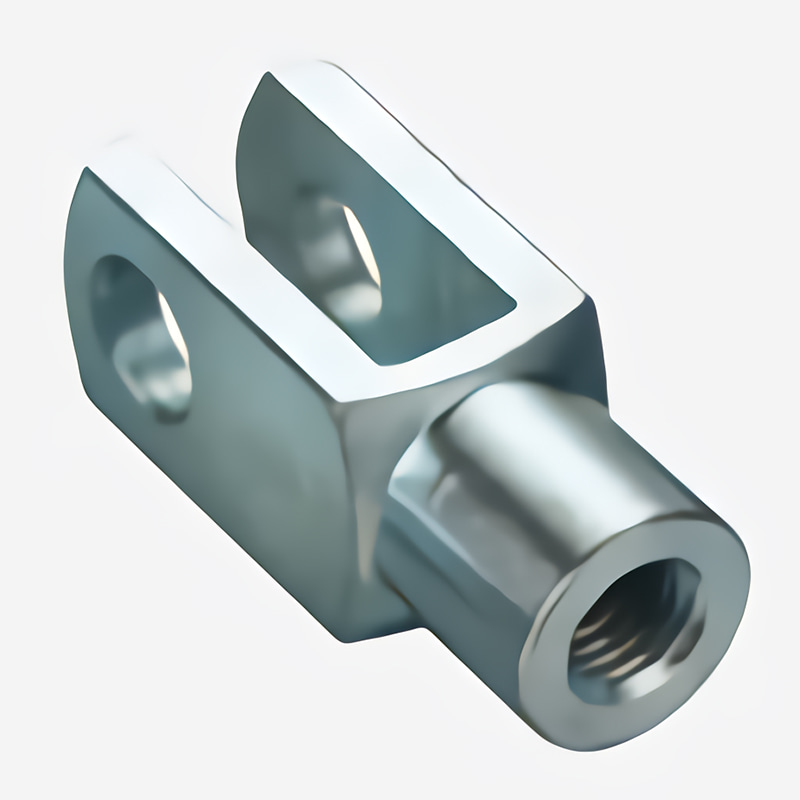

معيار DIN 71752 Clevis ، M18-M48

الجزء لا.

أبعاد

مم

وزن

كلغ

د 1

ز

أ 1

أ 2

ب 1

ب 2

د 2

د 3

F

L1

L2

L3

ص

H9

± 0.5

ح 11

0.50

-0.20

ب 13

0.70

-0.15

± 0.3

± 0.2

± 0.5

± 0.4

± 0.3

± 0.5

(غ 18 إكس 36)

18

36

36

36

18

18

M18X2.5

30

1.0

94

72

27

1.5

0.39

G18X36FG

18

36

36

36

18

18

M18X1.5

30

1.0

94

72

27

1.5

0.39

G20X40

20

40

40

40

20

20

M20X2.5

34

1.0

105

80

30

1.5

0.55

G20X40FG

20

40

40

40

20

20

M20X1.5

34

1.0

105

80

30

1.5

0.55

G20X80

20

80

40

40

20

20

M20X2.5

34

1.0

145

120

30

1.5

0.80

G20X80FG

20

80

40

40

20

20

M20X1.5

34

1.0

145

120

30

1.5

0.80

G25X50

25

50

50

50

25

25

M24X3

42

1.5

132

100

36

1.5

1.10

G25X50FG

25

50

50

50

25

25

M24X2

42

1.5

132

100

36

1.5

1.10

G28X56

28

56

55

55

28

28

M27X3

48

1.5

148

112

40

2.0

1.50

G28X56FG

28

56

55

55

28

28

M27X2

48

1.5

148

112

40

2.0

1.50

G30X54FG

30

54

55

55

30

30

M27X2

48

1.5

148

110

40

2.0

1.44

G30X60

30

60

60

60

30

30

M30X3.5

52

1.5

160

120

42

2.0

1.97

G30X60FG

30

60

60

60

30

30

M30X2

52

1.5

160

120

42

2.0

1.97

G35X54FG

35

54

70

70

35

35

M36X2

60

2.0

188

144

54

3.0

2.93

G35X72

35

72

70

70

35

35

ام 36 اكس 4

60

2.0

188

144

54

3.0

2.93

G35X72FG

35

72

70

70

35

35

M36X2

60

2.0

188

144

54

3.0

2.93

G36X72

35

72

70

70

36

36

ام 36 اكس 4

60

2.0

188

144

54

3.0

2.93

G36X72FG

35

72

70

70

36

36

M36X2

60

2.0

188

144

54

3.0

2.93

G40X84FG

40

84

85

85

40

40

M42X2

70

3.0

232

168

63.5

5.0

5.64

G42X84

42

84

85

85

42

42

M42X4.5

70

3.0

232

168

63.5

5.0

5.34

G42X84FG

42

84

85

85

42

42

M42X2

70

3.0

232

168

63.5

5.0

5.34

(غ 50 إكس 96)

50

96

96

96

50

50

M48X5

80

3.0

265

192

73

5.0

7.86

G50X96FG

50

96

96

96

50

50

M48X2

80

3.0

265

192

73

5.0

7.86
